Double Girder Overhead Crane With Hydraulic Grapple Grab Bucket
Product description of double girder bridge crane with hydraulic grab
QZ Grab Double Girder Overhead Crane is widely used to transport, assemble, load and unload incompact goods in mine, port, factory, workshop, warehouses, and goods yard, etc. Grab's open direction is divided into parallel and vertical with main beam and the grab can be double or four wire rope, mechanical or electric hydraulic type according to different work duty and materials.
Electric System:
1. Control panel protection degree is IP54;
2. Reasonable components installation, convenient for check and maintenance;
Safety Protection Devices:
Overload limiter, limit switch, interlocking protection devices, buffer, track sweep plate, bus bar protection board, anti-collision device, main disconnecting switch, emergency stop system and motor overload protection.
Constitution:
The bridge: traverses on the runway;
The trolley: traverses on the bridge and lifts up and down;
The runway: tied to the building structure.
Main Features of QZ model Crane:
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine.
Attention:
Safety is the most important issue for cranes. To ensure the safety,It is prohibited to use the equipment in the combustible, explosive or corrosives environment.(Need explosion proof type for this).Safety system:
1. All the cranes are equipped with overload protection device, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system and so on.
2. All operations are controlled by central control system. Excellent After Sales Service
3. The whole machines would be guaranteed for one year from the test run date.
4. Low charge for continue maintenance when warranty is expired.
Product technical parameters
| Lifting Capacity | T | 5t | 10t | 16t | 20t |
| Span | m | 10.5-31.5m |
| Speed | Lifting | m/min | 40.1 | 40.7 | 41.8 | 48.6 |
| Traveling of Trolley | 44.6 | 45.6 | 43.2 |
| Traveling of Crane | 93.7/86.4 | 76/89 | 89/87.3 | 87.3 |
| Operational Model | Cabin; remote control |
| Working Duty | A6 |
| Steel track recommended | 43kg/m or QU70 |
| Power Supply | Three-phase A.C. 380V, 50Hz |

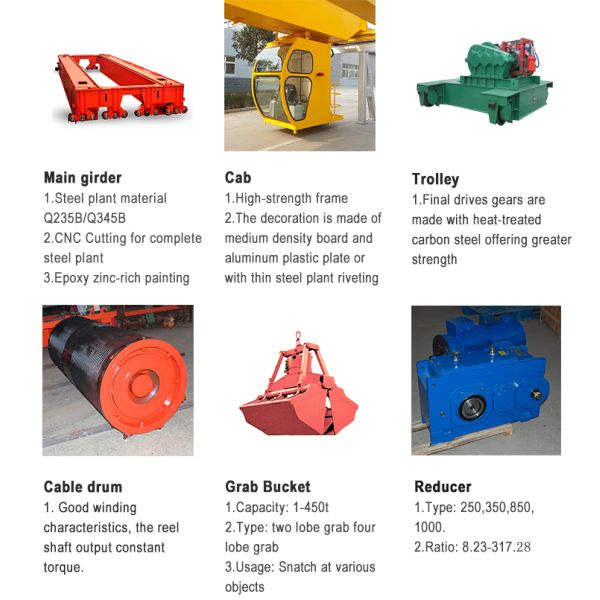

Product Details
