Top Quality Remote Control Low Headroom Type Single Beam E0T Crane
Product description of Top Quality Remote Control Low Headroom Type Single Beam E0T Crane:
The low headroom single girder overhead crane is a light-duty material handling equipment, designed for low headroom workshop application.
The standard Lifting capacity is from 10 to 10 tons. The span is 7.5to 31.5 meters. The working grade is A3. The working temperature is -25°C to 40°C. It is matched with low headroom electric hoist, the self height of this type of hoist is lower than the normal CD MD type electric hoist, therefore, this type hoist could help to increase the lifting height at the low height building.
This kind of overhead crane (overhead crane) is widely used in low height factories, warehouses, material inventories and other places to lift goods. It is forbidden to use inflammable, explosive and other corrosive environments.
Technical Parameter(customizable) of single beam overhead crane:
| LDC low headroom single girder overhead crane |
| Lifting capacity | 1 ton | 2 ton | 3 ton | 5 ton | 10 ton | 16 ton | 20 ton |
| Span | 7m-31.5m |
| Lifting height | 6/9/12/18/24/30m |
| Lifting motor | ZD122-4/1.5KW | ZD131-4/3.0KW | ZD132-4/4.5KW | ZD141-4/7.5KW | ZD151-4/13KW | ZD151-4/13KW | ZD152-4/18.5KW |
| Cross motor | ZDY111-4/0.2KW | ZDY111-4/0.4KW | ZDY112-4/0.4KW | ZDY121-4/0.8KW | ZDY121-4/0.8x2KW | ZDY121-4/0.8x2kw | ZDY121-4 /0.8x4kw |
| Lifting speed | 0.8/8 m/min | 0.8/8 m/min | 0.8/8 m/min | 0.8/8 m/min | 0.7/7 m/min | 0.35/3.5 m/min | 0.4/4 m/min |
| Cross speed | 20 m/min | 20 m/min | 20 m/min | 20 m/min | 20 m/min | 20 m/min | 20 m/min |
| Traveling speed | 20 m/min | 20 m/min | 20 m/min | 20 m/min | 20 m/min | 20 m/min | 20 m/min |
| Power source | 380V 50Hz,3Phase or customized |
| Working class | A3 |
Main Features of Bridge single beam overhead crane:
1,Strong box type,U-shape groove of main beam is manufactured by one time forming machine,no weld,strong and nice looking.
Rib plate is welded by robot group,high efficiency,high quality and strong bearing capacity,long service life.
2, End beam U shape groove is also bended by one time forming machine,welding is done by robot.
3, Sand blast for the whole crane steel structure, to make sure the paint is very strong.
4, Six action direction movement, to get enough working area.
5, Motor protection class IP44,IP54,IP55
6, Forged wheel, insert mounting with shaft,strong and long service life.
7, Schneider main electrics,Pendent line control,remote control,or cabin control
8, Frequency inverter is optional for speed control.

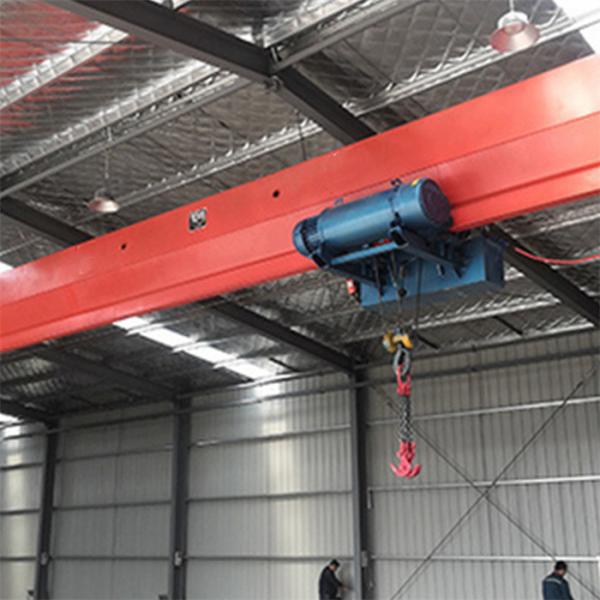

Detailed Images of single beam overhead crane:
FAQ
A: Can you provide custom service?
B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
A: Are there any professional technicians to assist our installation?
B: Yes. We have a professional installation team, who has already been to many countries to assist the installation.If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
A: Whether or not you can offer the matched spare parts?
B: Yes, as a cable trolley crane manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.
A: How can you ensure the quality?
B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are alsowarmly welcomed to our factory to make the inspections.
