Remote Control 5TON 10TON 15TON 20TON Electric Hoist Single Girder Gantry Crane is a small and medium-sized lifting equipment running on rails, which is mainly composed of gantry frame (main beam, support leg, ground beam, etc.), lifting mechanism, running mechanism and electronic control system.
Product Technical parameters
| Rated load/ton | 5 | 10 | 16 | 20 |
| Span/m | 10-40 |
| Lifting height/m | 6/12/18 |
| Working class | A3/1bM |
| Lifting speed/m/min | 8 | 7 | 3.5 | 3.5 |
| Trolley running speed/m/min | 20 | 20 | 20 | 20 |
| Crane running speed/m/min | 20 | 20 | 20 | 20 |
| Power source | 380V50Hz3PhAC | 380V50Hz3PhAC | 380V50Hz3PhAC | 380V50Hz3PhAC |
| Control mode | Remote control | Remote control | Remote control | Remote control |
Product photos

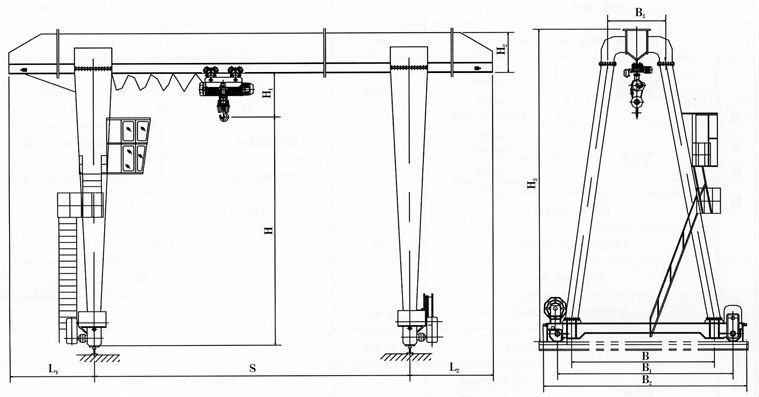

Product sketch
Main Parts
Main Features
1.It has main beam,legs,ground beam,lifting mechanism,electric controlsystem.
2.Its structure type has two types, box type or trussed type,Simple and compact structure, steady performance.
3.Lifting unit is Electric Hoist,capacity 5ton,10ton,15ton,20ton
4.Motor protection class IP44,IP54,IP55,Motor insulation class F,H
5.Control mothod:Pendent control ,cabin control or remote control.
6.Working environment tempetature:-20'C~45'C.
Attention
Safety is the most important issue for cranes. To ensure the safety,It is prohibited to use the equipment in the combustible, explosive or corrosives environment.(Need explosion proof type for this).
Henan Mine Crane Co.,Ltd is the largest industrial crane manufacturer in China since 2002. Main products are Electric hoist/Overhead crane/Gantry crane/Grab crane/Magnet crane/Ladle Lifting crane/Explosion proof crane/Container gantry crane/European type crane and hoist /Electric Winch,Jib crane,Scissor Lift/Crane components.
Henan Mine Crane has 4500staffs,1420000m2 workshop area,3500sets of various advanced equipments,yearly sales 100000sets of crane and hoist, ISO,CE etc certifications, cranes are exported to 120countries.
In Pakistan,we have supplied our cranes to Abbas Steel Group,Almoiz industries Ltd,Fareed Engineering works.
Besides Pakistan,we also supplied our cranes to India,Bangladesh,Philippines,Uzbekistan,Cameroon,Egypt,Ethiopia,Nigeria,Morocoo,Algeria.
Certifications
We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.
Installation of Double Girder Gantry crane.
