High Quality 16 Ton Double Beam Cabin Control Magnetic Traveling Rail Gantry Crane
Product description of 16t Heavy duty Double Girder Magnetic Traveling Rail Gantry Crane
The MC Type Electromagnetic Double Girder Gantry Crane is mainly composed of Portal steel structure,lifting trolley,magnet system,cabin and cable and electrical control equipment, etc.
Steel structure is mainly composed of main beam, legs,ground beam, connecting beam, accessories and so on. The main beam adopts double main beam rectangular section, and the track is laid on the plane of the main beam for the trolley to run. The legs adopt box type variable section, and the legs are connected with the main beam by flange bolts.
The crane traveling mechanism has 8 wheels in total, 4 walking wheels on both sides of the track. The main girders of the crane are equipped with walking platform, protective railings and protective plates meet the corresponding national standards.
The power supply of the crane is AC 380V 50Hz or customized voltage,power supply system can be cable and cable drum or air bus bar system. Trolley adopts festoon cable and I beam cable pulley. The crane is also equipped with overload protection and the limit switch of each mechanism and other safety protection devices.
There are full field of view Cabin suspend under the main girder, there are joint control desk installed in the Cabin, The main girder joint with the two side end carriage with welding joint.
Some configuration of MC type Double girder Magnetic gantry crane can accord your demand:
1. Single or double speed of the electric hoisting speed.
2. Single speed or variable speed of the traveling speed.
2. Three control mode: pendent line with press button control ,remote control or cabin control.
3. It should be informed whether using indoor or outdoor, to fix windproof and rainproof devices.
4.Ordinary work duty or heavy duty, whether need automation
5.The other feasible configuration user proposes.
Control method:
Pendant Control, remote control, cabin control
Design and construction rules:
All the standards which is required for the U type Double girder hook gantry crane is the Chinese standard
Painting:
Primer and finishing paint
Product technical parameters:
| Lifting weight(T) | 5 | 10 | 16/3.2 | 20/5 |
| Span(m) | 18~35 |
| Max Lifting height(m) | Main Hook | 13 |
| Auxiliary Hook | 15 |
| Working class | A6,A7 |
| Speed(m/min) | Main Hoisting | 10 |
| Aux hoisting | 15 |
| Trolley Cross Traveling | 35 |
| Crane Long Traveling | 40 |
| Motor Type | Heavy duty slip ring motor |
| Motor (Kw) | Main Hoisting | 15,22,37 |
| Trolley Cross Traveling | 15,22,37 |
| Crane Long Traveling | 2*6.3,2*8.5,2*11 |
| Control mode | Remote control,Cabin control |
| Recommended Rail model | 30kgs/m | 38kgs/m | 43kg/m |
| Power source | 3Ph A.C 50Hz 380V |

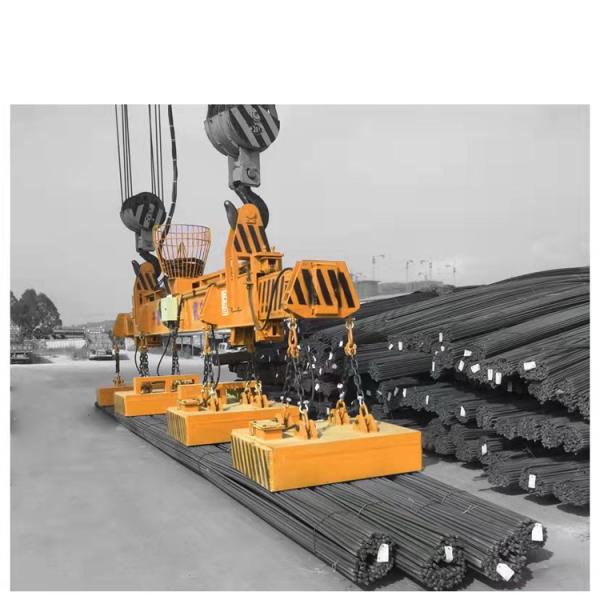

Product Picture:
We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control,ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.
Product Tags:
|
|
16 Ton Double Beam Magnetic Traveling Rail Gantry Crane Cabin Control Images
|
