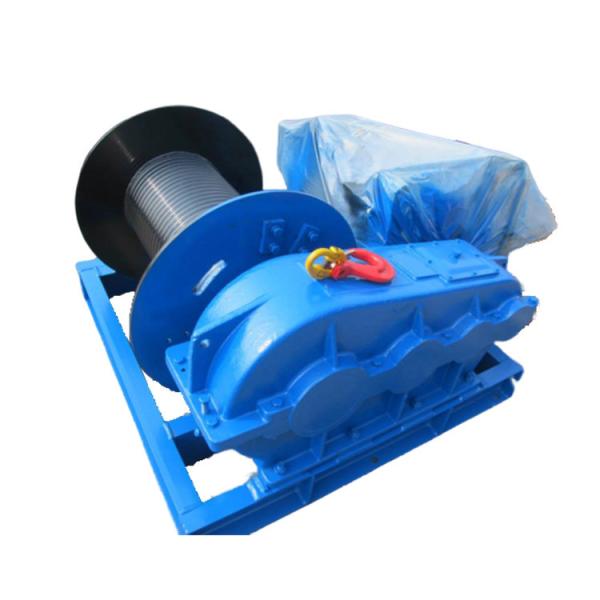

Electric Wire Rope Winch Machine 2500lbs JK Electric Pulling Winch
High speed Electric Winch is widely used on bridge /gantry carne, it is mainly used in marine to help lifting ship or fishing lifting, the large and middel sized concrete, steel structure, mechanical equipment installation and dismantling. The structural characteristics of steel wire rope is an orderly, lifting safe and reliable. Suitable for all kinds of bridge, port, wharf, road and bridge engineering.
Features of electric winch:
1.Top quality with competitive price
2.Widely used in factory, mining, shipyard or double beam cranes
3.Compact structure and reasonable design
4.Easy to install, operate and maintenance
5.Low noise and good working condition
| Technical Parameter of High speed Electric Winch |
| Model | Rated load(KN) | Rated speed (m/min) | Rope capacity (m) | Rope diameter (mm) | Motor model | Motor power (KW) | Overall dimensions (mm) | Total weight (kg) |
| JK1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620x701x417 | 300 |
| JK1.6 | 16 | 24 | 120 | 12.5 | Y132S-4 | 5.5 | 945×996×570 | 500 |
| JK2 | 20 | 24 | 120 | 13 | Y132M-4 | 7.5 | 945x996x570 | 550 |
| JK3.2 | 32 | 25 | 200 | 15.5 | YZR180L-6 | 15 | 1325x1335x840 | 1200 |
| JK5 | 50 | 30 | 200 | 21.5 | YZR225M-6 | 30 | 1900x1620x985 | 2400 |
| JK8 | 80 | 25 | 250 | 26 | YZR280S-8 | 45 | 1533x1985x1045 | 3500 |
RFQ:
Q1: What's the information should I provide when inquiry?
A1: More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source or other specials you give us will be more appreciated.
Q2: What do Henan Mine Crane do?
A2: We design, manufacture, install overhead crane, gantry crane, port crane, hoists, winch and provide customer lifting solutions.
Q3: What makes you different from other manufactures?
A3: We have trained service technicians who will be able to get your material handling equipment up and running and have been providing our customers and effective service solution.
Q4: What area do you service? How can we install the crane?
A4: We mainly service in China and our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q5: Can this type work in hazardous environment?
A5: Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q6: Can you provide the various lifting tools?
A6: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
