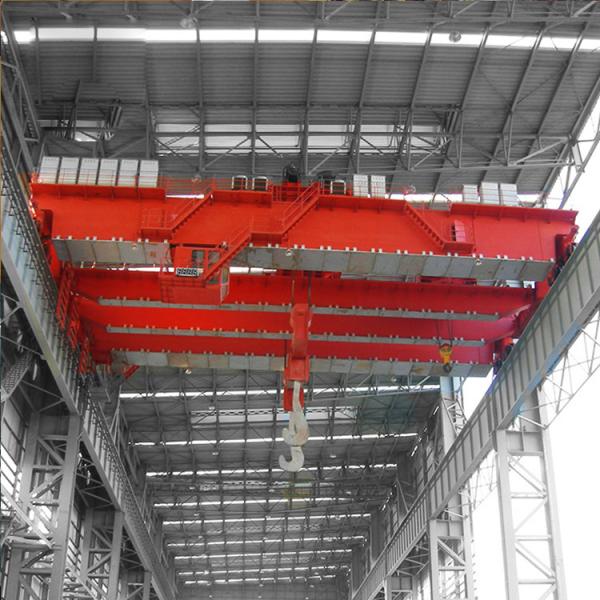

QDY Type 5 Ton 74 Ton Ladle Crane Working Class A7 For Metallurgy
QDY Type 5 Ton 74 Ton Ladle Crane Working Class A7 For Metallurgy is composed of boxed bridge frame, hook, crane travelling mechanism and electric system. The main hook employs a load tool as the lifting device to hoist steel ladle, the auxiliary hook cooperate with the main hook to accomplish pouring of molten steel and steel slag, and other auxiliary hoisting.Use various speed system with speed ratio as 1:10 for main mechanisms such as hoisting, trolley traversing and crane travelling. Also we can choose the suitable speed under the customer requirement.
Main Features
Working condition:
1．The power of crane is three—phase AC；rated frequency is 50HZ；rated voltage is 380V；
2．The temperature of working environment is-10~+60℃；
3．The relative humidity is no more than 50％ when the temperature is+40℃；
4．If the requirements are more than above-mentioned,it shall carry out the requirements in the purchase contract as the user asks．
Safety feature:
a. Overload protection in the event of overload, the hoist unit switches off and only the lowering motion is possible
b. Long and cross travel limited by means of preliminary and final limit switches or Wireless anti-collision device
c. Anti-falling protection for the Three-in-One electric motor of trolley and crane prevents from accidental falling
d. All movements can be switched off by actuating the emergency-off switch at the control station via a main contact
e. High quality long time bearing polyurethane materials buffer fixed at the end of trolley travelling and crane travelling to prevent over traveling
f. Safety hook latch used for avoiding the lifted material out off from the hook
g. Audible and visual alarm device to inform the person stay near by the travelling crane
h. Rain Cover for lifting mechanism of outdoor cranes, electric cabinet and driving mechanism
i. Protective earth conductor is fitted as standard
j. Voltage lower protection system
k. Current overload protection system
Product Structure
Product Details
FAQ:
Q1: What's the information should I provide when inquiry?
A1: More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source or other specials you give us will be more appreciated.
Q2: What do Henan Mine Crane do?
A2: We design, manufacture, install overhead crane, gantry crane, port crane, hoists, winch and provide customer lifting solutions.
Q3: What makes you different from other manufactures?
A3: We have trained service technicians who will be able to get your material handling equipment up and running and have been providing our customers and effective service solution.
Q4: What areas do you service? How can we install the crane?
A4: We mainly service in China and our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q5: Can this type work in hazardous environment?
A5: Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q6: Can you provide the various lifting tools?
A6: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
