1760N/Mm2 Lifting 30m A3 8m/Min Electric Wire Rope Hoist 5tons

Henan Mine Crane Co.,Ltd.

1760N/Mm2 Lifting 30m A3 8m/Min Electric Wire Rope Hoist 5tons

  • 1
  • 2
  • 3

Brand Name : kuangyuan

Model Number : CD MD

Certification : ISO CE GOST

Place of Origin : Henan,China

MOQ : 1 Set

Payment Terms : L/C, T/T

Supply Ability : 10000 Sets per Year

Delivery Time : 30 Work Days

Packaging Details : export packing

Price : USD 890~2500 sets

Applicable Industries : Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C

Power source : Electric

Working class : A3

Lift speed : 0.8/8m/min

Motor : Nanjing special motor

Lifting height : 6-30m

Sling Type : Wire Rope

Warranty of core components : 18months

Main electrical parts : Siemens or Schneider brand

Capacity : 5Tons

Contact Now

CD1/MD1 Electric Cable Hoist Lift Things 1t,2t,3t,5t,10t for Hot Sale with Wire Rope

Product description:

CD/MD electric hoist is small-sized lifting equipment, which can be mounted on single beam, bridge, gantry and arm cranes. With slight modification, it can also be used as a winch. It is widely used in factories, mines, harbors, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions. Adjustable speed of electric hoist., electric hoist can satisfy normal application.

Main Features of electric hoist:

1. Design: International advanced tide compact and nice.
2. Reduce: High strength hard gear surface, inclined gear driving with low noise.
3. Motor: Inside fit plane brake, double winding pole changing control motor, incorporate with reducer, suit higher classification.
4. Wire Rope: The tensile strength is 1760N/mm2.
5. Limit Switch: Cam limit model operate safety.

6. Working duty: A5/M5

7. Speed: with Frequency inverter

8. Main electrical parts: Schneider

9. Motor brand: China or Germany.

Technical Parameter(customizable):

Model CD1
Capacity Tons 0.25 0.5 1 2 3 5 10 16 20
Hoisting height m 3,6,9 6,9,12,18,24,30 9,12,18,24,30 9,12,18
Hoisting speed m/min 8 7 3.5 4
Travel speed m/min 20 20/30 20
Wire rope Dia.(mm) 3.6 4.8 7.7 11 13 15 17.5 19.5
Spec. 6 x19 6x37+FC

Hoisting

motor

Type Type ZD112-4 ZD121-4 ZD122-4 ZD131-4 ZD132-4 ZD141-4 ZD151-4 ZD152-4
Power Power(kW) 0.4 0.8 1.5 3 4.5 7.5 13 18.5

Rotation

speed

Rotation

speed(r/min)

1380
Current (A) 1.25 2.4 4.3 7.6 11 18 30 41.7

Travel

motor

Type Type ZDY110-4 ZDY111-4 ZDY112-4 ZDY121-4
Power Power(kW) 0.06 0.2 0.4 0.8 0.8x2

Rotation

speed

Rotation

speed(r/min)

1400 1380
Current Current(A) 0.3 0.72 1.25 2.4 4.3

Detailed Images:

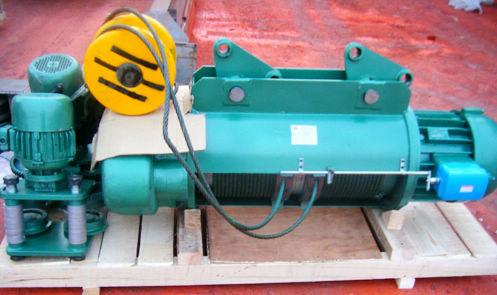

1760N/Mm2 Lifting 30m A3 8m/Min Electric Wire Rope Hoist 5tons

Details:

CD Hoists are specially designed for higher lifts, faster hoisting & cross travel speeds & moveable on curved tracks can be manufactured accord demand.

MOTORS: We offer hoist & crane duty Vz hour rated squirrel cage induction motors, confirming to IS 325 with comparatively higher H.P. and higher starting torque to reduce handling time. It is flange mounted to suit our design and with Class B or F insulation.

ROPE DRUM: The rope drum is machined & grooved accurately, to ensure proper seating of wire rope in a proper layer. The drum is fitted with two heavy duty Ball / Roller bearings for smooth operation & longer life.

ROPE GUIDE: The rope guide is made of special close grain castings & is specially designed and accurately machined to suit the grooves of the rope drum & prevents the rope from overriding & loosening. It also operates the limit switches provided as a safety feature to limit the over hoisting & over lowering of the hook. The guide is designed to ensure proper tensioning of the rope.

GEAR BOX: Totally enclosed oil splash lubricated & dust free gear box is provided for smooth, trouble free & longer life. All gears are helical type and cut from alloy steel / low carbon steel on hobbing machines for achieving higher precision & a special process of gear toughening ensures smooth, silent, trouble free running of drive system. The pinions and gears are supported on anti-friction bearings on both ends.

CONSTRUCTION: brake, motors, gear box & control panel are independent units and accessible easily. The complete hoist can be easily maintained by keeping it in its installed position, thus saving precious labor as well as down time and maintenance time.

1760N/Mm2 Lifting 30m A3 8m/Min Electric Wire Rope Hoist 5tons

FAQ

A: Can you provide customize service?

B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.

A: Are there any professional technicians to assist our installation?

B: Yes. We have a professional installation team, who has already been to many countries to assist the installation.If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.

A: Whether or not you can offer the matched spare parts?

B: Yes, as a Single girder 10 ton overhead crane sale manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.

A: How can you ensure the quality?

B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are alsowarmly welcomed to our factory to make the inspections.
